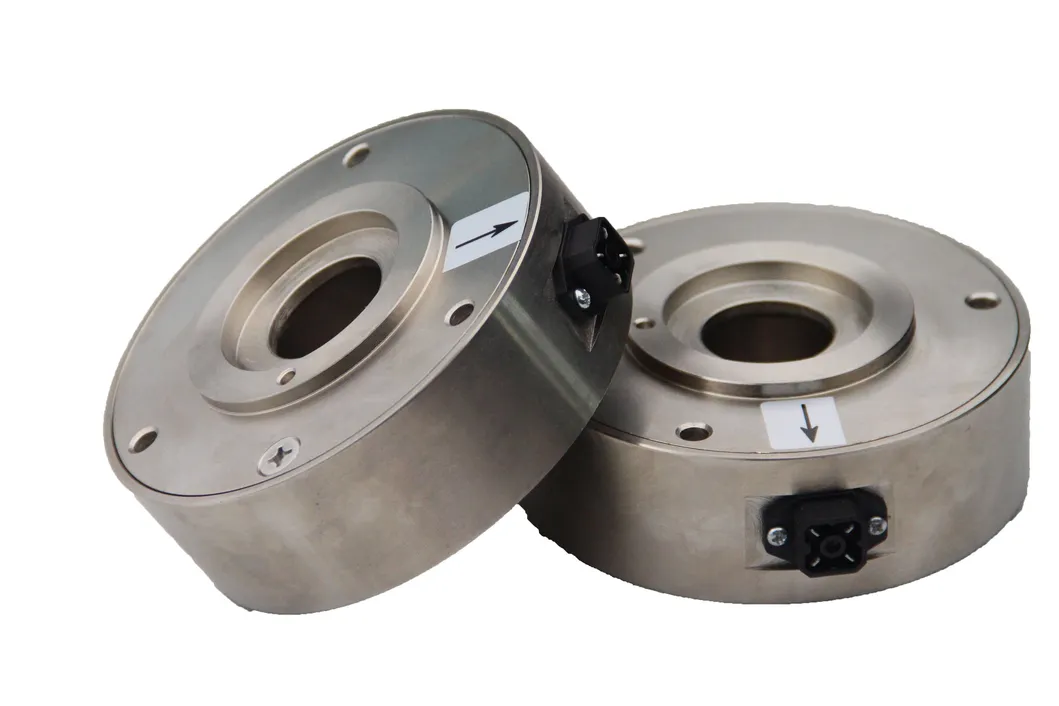

A reliable web tension control may reduce web tears in order to increase productivity. FIBOS load cells, used in a precise tension control system, are designed to carry out these delicate tasks.
Operating principle: FIBOS load cells use the strain gauge operating principle to guarantee a perfect detection of the web tension. Strain gauges resistors are mounted on an inner metal
the foil of a load cell and connected to each other in a Wheatstone bridge able to convert a mechanical movement into an electrical signal, that must be amplied by suitable ampliers. |
 |
Please contact Estee for products details and catalog→
|
Specifications
|
Technique
|
Specifications
|
Technique
|
|
Capacity
|
10~3000kg
|
Insulation
|
≥5000MΩ/100VDC
|
|
Rated output
|
≈1.0mV/V
|
Recommended excitation
|
5~12V
|
|
Zero balance
|
±0.03%F.S.
|
Maximum excitation
|
15V
|
|
Non-linearity
|
0.5%F.S.
|
Compensated temp range
|
-10~40ºC
|
|
Hysteresis
|
0.5%F.S.
|
Operation temp range
|
-20~75ºC
|
|
Repeatability
|
0.25%F.S.
|
Safe overload
|
150%F.S.
|
|
Interference error
|
0.3%F.S.
|
Ultimate overload
|
500%F.S.
|
|
Temp.effect on output
|
0.1%F.S./10ºC
|
|
|
|
Temp.effect on zero
|
0.1%F.S./10ºC
|
|
|
|
Input impedance
|
350±100Ω
|
|
|
|
Output impedance
|
300±5Ω
|
|
|
